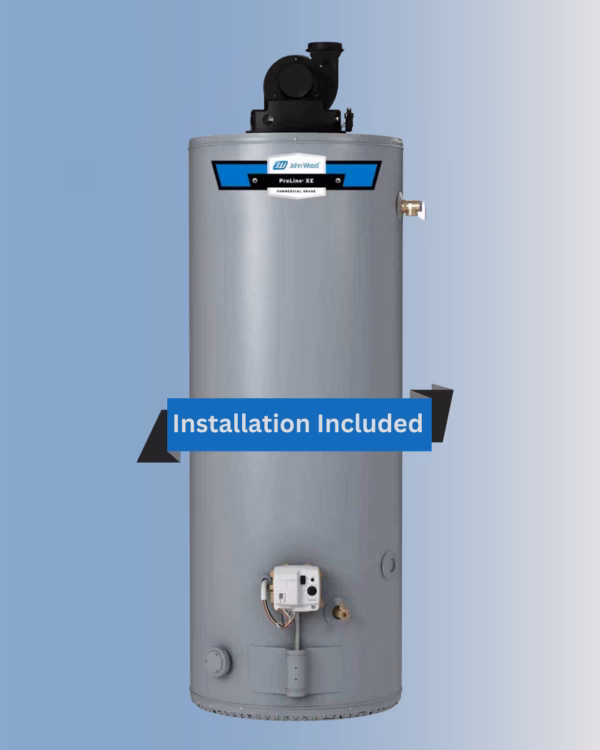

John Wood ProLine XE Power Vent Water Heater (PV40, PV50, PV60, PV75)
From $2,779.00
John Wood ProLine XE Power Vent Water Heater
The John Wood ProLine XE delivers fast hot-water recovery with a high-efficiency power-vent design and up to 0.73 UEF. Built with commercial-grade quality, it is a smart upgrade for dependable hot water in Toronto homes. 8-year parts and 8-year labour warranty on 40 and 50-gallon models.
Highlights
- Energy-efficient power vent with up to 0.73 UEF
- 2” CFC-free foam insulation for improved efficiency
- 3-position rotatable blower for easier installation
- TankSaver® + glass lining for long-lasting corrosion protection
- Venting flexibility with 2”, 3”, or 4” ULC S636 PVC, CPVC, or polypropylene
Questions? Call our Experts
Hide
Warranty & Installation
Our pricing includes all equipment, materials, and installation time required for a professional setup of your new system. We strictly adhere to the manufacturer’s specifications to ensure optimal performance and the right equipment fit for your home. Each system is thoroughly tested and commissioned on-site.
We are committed to the quality of our workmanship and the products we install. That’s why our systems come with some of the most comprehensive warranty coverage in the industry. The installation price includes the standard manufacturer’s warranty, with the option to extend it to cover any labour costs for future repairs.
Product Description
John Wood Proline XE Reliable Hot Water, Built Like a Commercial Tank
John Wood ProLine XE power vent water heaters deliver residential hot water with commercial-grade build quality.
These models combine strong recovery, efficient operation, and flexible venting options for a clean, modern installation.
Energy Savings
- Industry-leading energy-efficient power vent design with up to a 0.73 UEF
- 2” CFC-free foam insulation helps reduce standby heat loss
- Built-in heat traps on inlet and outlet reduce heat loss through piping
- Exceeds NRCan energy efficiency standards
Designed for Performance
- ProLine®XE models deliver residential sizing with commercial-grade quality
- 3-position rotatable blower for easier installs in tight mechanical rooms
- Exclusive TankSaver® design helps prolong tank life
- Suitable for elevations up to 10,100 ft (3,078 m)
- Available in natural gas or propane (this product page lists the Natural Gas “N” models)
- Glass lining provides superior protection against tank corrosion
Safety Features
- The flammable vapour sensor disables operation if vapours are detected
- Robust air intake snorkel helps block vapours from entering the combustion chamber
Serviceability
- Electronic gas control with advanced self-diagnostics for easier troubleshooting
- Conveniently located T&P and drain valve for simpler service access
The Ultimate in Venting Flexibility
- Vents with 2”, 3”, or 4” ULC S636 PVC, CPVC, or polypropylene pipe
- Supports vertical or horizontal venting configurations
Model Performance (Natural Gas)
| Model | Capacity | Input | Recovery @ 90°F Rise | First Hour Rating | UEF | Warranty (Tank/Parts) |
|---|---|---|---|---|---|---|
| PV40N | 40 USG (151 L) | 40,000 BTU/h | 44 GPH (167 LPH) | 73 USG (276 L) | 0.67 | 6 / 6 years |
| PV50N | 50 USG (189 L) | 40,000 BTU/h | 44 GPH (167 LPH) | 90 USG (341 L) | 0.72 | 6 / 6 years |
| PV60N | 60 USG (227 L) | 42,000 BTU/h | 46 GPH (174 LPH) | 106 USG (401 L) | 0.69 | 6 / 6 years |
| PV75N | 75 USG (284 L) | 72,000 BTU/h | 80 GPH (303 LPH) | 155 USG (587 L) | 0.69 | 6 / 6 years |
Dimensions and Shipping Weight
| Model | Install Height (A) | Height to Top (B) | Tank Dia. (C) | Overall Depth (D) | Ship Wt. |
|---|---|---|---|---|---|
| PV40N | 59 in (150 cm) | 49 5/8 in (126 cm) | 22 in (56 cm) | 29 1/8 in (74 cm) | 174 lb (79 kg) |
| PV50N | 60 1/4 in (153 cm) | 50 3/4 in (129 cm) | 24 in (61 cm) | 31 1/8 in (79 cm) | 198 lb (90 kg) |
| PV60N | 67 1/4 in (171 cm) | 57 7/8 in (147 cm) | 24 in (61 cm) | 31 1/8 in (79 cm) | 216 lb (98 kg) |
| PV75N | 70 5/8 in (179 cm) | 61 1/4 in (156 cm) | 26 in (66 cm) | 33 1/8 in (84 cm) | 277 lb (126 kg) |
Installation Notes
- Power venting supports vertical or horizontal configurations
- Venting uses 2”, 3”, or 4” ULC S636 PVC, CPVC, or polypropylene pipe
- 3-position rotatable blower supports flexible placement
- PV75N includes side connections for combination applications
Serving Toronto & the GTA. If you are unsure which size is right, ask a City Home Comfort advisor for guidance.
Learn More from John Wood: Official Page
Specifications
Disclaimer
The price includes a standard, like-for-like installation within our service area. Some items may not be included and will be evaluated during the site visit.
